The following is a list of dimensions which can be
used to determine if the camper you are interested in will fit you truck
WITHOUT modification to the plans and patterns. If the dimensions of your truck
vary from those given, minor modifications can usually be made, especially with
regard to the lower portion or "box" of the camper. While making a
camper larger or smaller in width, length, or height will usually not be a
problem, adjustments will need to be made to aluminum sizes shown on the
plans.
CAMPER DESIGN |
'A' |
'B' |
'C' |
'D' |
'E' |
'F' |
ACAPULCO |
N/C |
49" |
65" |
19 3/4" |
25' |
46" |
BAYOU |
N/C |
49" |
49" |
19 3/4" |
N/C |
46" |
CASCADE |
8'6" |
49" |
65" |
19 3/4" |
N/C |
46" |
DIXIE |
8'6" |
49" |
49" |
19 3/4" |
N/C |
46" |
EVERGLADE |
8'6" |
49" |
65" |
19 3/4" |
N/C |
46" |
FAIRHAVEN |
8'6" |
49" |
65" |
19 3/4" |
N/C |
46" |
GRANDVIEW |
8'6" |
49" |
65" |
19 3/4" |
N/C |
46" |
IMPORTER |
6'4 1/4" |
38 1/4" |
42" |
16 3/8" |
N/C |
37" |
IMPORTER LONG BED |
8'0" |
38 1/4" |
55" |
16 3/8" |
N/C |
37" |

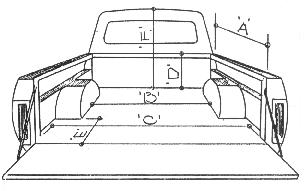

'A' = Maximum distance in truck bed which will limit forward travel
of camper.
'B'= Minimum width between wheel well housings.
'C'= Minimum tailgate opening clear width.
'D'= Maximum height from floor to top of bed walls.
'E'= Minimum distance at floor between back of wheel well housing to
inside of tailgate when closed.
'F' = Maximum height from bed floor to top of cab roof.
N/C =Not Critical
|
|
