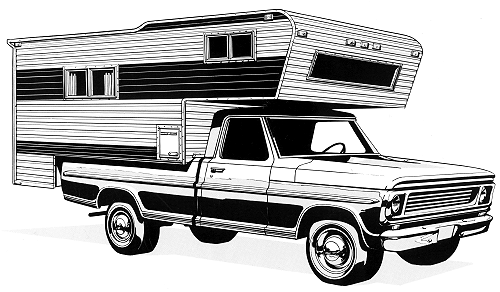

Fairhaven

an 11' compartmented living cabover camper

Fairhaven Plans & Patterns package: $60.00

Fairhaven Specifications:
Camper floor length 11'1"
Camper overall length 16'10"
Camper overall height 6'11"
Camper overall width 7'6"
Living area headroom 6'3" to 6'7"
Cabover headroom (deduct for mattress) 32"
Fresh water capacity (standard) 20 gals.
LPG capacity (standard) 5 gals
Dry weight (estimated) 1700 lbs.
Sleeping capacity 4 - 6 adults
Truck capacity (recommended) 3/4 ton

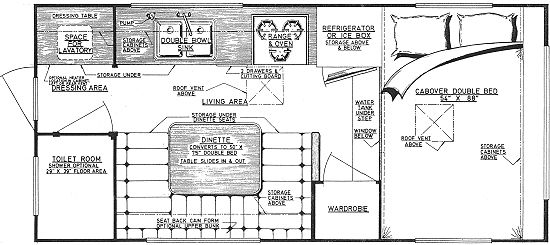

The Fairhaven has all facilities for self-containment. The center dinette-side kitchen layout features a large bathroom with room for a shower. Across the aisle is a dressing table and lavatory. Optionally, this area could be converted to a bureau with drawers or additional cupboard space. An optional curtain can provide privacy between the dressing area and living area. The kitchen features plenty of room for an icebox or refrigerator, stove with oven, and double sink with space on either side. Generous storage spaces are provided as well as a roomy wardrobe. Sleeping facilities are provided when the dinette is made into a double bed. A folding bunk for two over the dinette can also be added. The main cabover bed is "extra" sized, being larger than a standard double bed. The Fairhaven with all its features is no more difficult to build than other Glen-L campers. The pattern method simplifies construction, while the pictorial instructions along with written procedural text, material listings, and detailed large scale drawings take the builder through every phase of construction. You'll not only end up with a professional appearing camper, but you will save many dollars while enjoying a fascinating new hobby - BUILDING YOUR OWN CAMPER.
