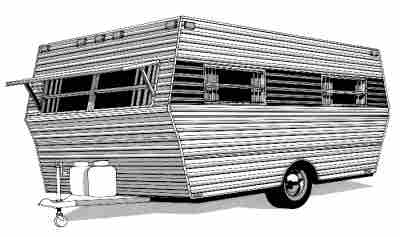

Klamath
a 16' rear entry travel trailer
Klamath Plans & Patterns package: $54.00
|

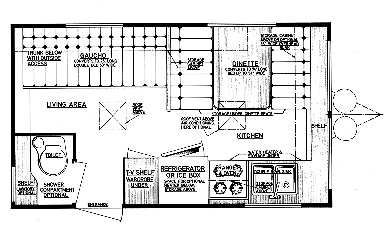

The 16' Klamath model has a rear entrance, which allows the kitchen area to be removed from the traffic pattern. Sleeping accommodations are truly spacious and you could "curtain off" the living area from the dinette, if desired, for two room privacy. The toilet room location is separated from most of the trailer and, by being adjacent to the entrance door, allows dripping bathers to conveniently get to the "dressing room" without tramping through the whole trailer. A TV shelf is shown, but the wardrobe may be extended full height, if desired. |
| Trailer Specifications: | |
|---|---|
| Trailer length overall | 16' 1" |
| Trailer width overall | 7' 10" |
| Interior length overall | 13' 7" |
| Interior width overall | 7' 6" |
| Interior height (headroom) | 6' 5" |
| Dry weight (estimated) | 2500 lbs. |
| Tongue weight (estimated) | 270 lbs. |
| Ground to roof height | 8' 2" |
| Fresh water capacity | 30 gal. |
| Holding tank capacity | 30 gal. |
| LPG capacity | 10 gal. |
| Sleeping capacity | 4-6 adults |
| Ground to frame clearance | 13" |
