Laguna

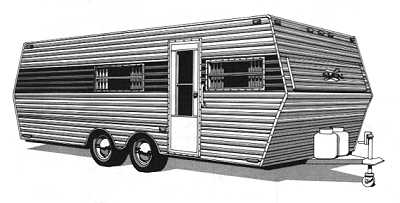

a 20' front entry/side dinette travel trailer

Laguna Plans & Patterns package: $60.00

The 20' Laguna model has the popular side dinette location with front entrance. There's plenty of sleeping space for us to six, and the kitchen will be a cook's delight, with generous countertop areas flanking both sides of the sink. The wardrobe is large by any standard of comparison, and the bathroom is equal or superior to those found in much longer trailers. As with all Glen-L travel trailers, the Laguna is designed to accept all self-containment features, even air conditioning.



Trailer Specifications:
Trailer length overall 20' 1"
Trailer width overall 7' 10"
Interior length overall 17' 7"
Interior width overall 7' 6"
Interior height (headroom) 6' 5"
Dry weight (estimated) 3500 lbs.
Tongue weight (estimated) 370 lbs.
Ground to roof height 8' 3"
Fresh water capacity 30 gal.
Holding tank capacity 30 gal.
LPG capacity 10 gal.
Sleeping capacity 4-6 adults
Ground to frame clearance 13"

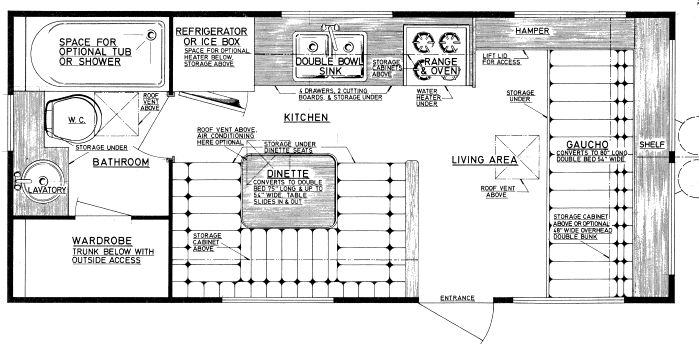

Laguna trailer floor plan
