Niagra

a 20' front rear/side dinette travel trailer

Niagra Plans & Patterns package: $60.00

The 20' Niagara model floor plan is popular with lovers of the outdoors for several reasons. Mainly, the private bathroom is directly adjacent to the convenient rear entrance door, which gives dripping bathers quick access to the "dressing room" and keeps them from passing through the living areas. The wardrobe location is also adjacent to the entrance door and allows easy curbside access without passing through the trailer. The living area is out of the traffic pattern and could be "curtained off" for two-room privacy. Naturally, you get the same spacious kitchen features found on all Glen-L models and commodious storage areas.



Trailer Specifications:
Trailer length overall 20' 1"
Trailer width overall 7' 10"
Interior length overall 17' 7"
Interior width overall 7' 6"
Interior height (headroom) 6' 5"
Dry weight (estimated) 3500 lbs.
Tongue weight (estimated) 370 lbs.
Ground to roof height 8' 3"
Fresh water capacity 30 gal.
Holding tank capacity 30 gal.
LPG capacity 10 gal.
Sleeping capacity 4-6 adults
Ground to frame clearance 13"

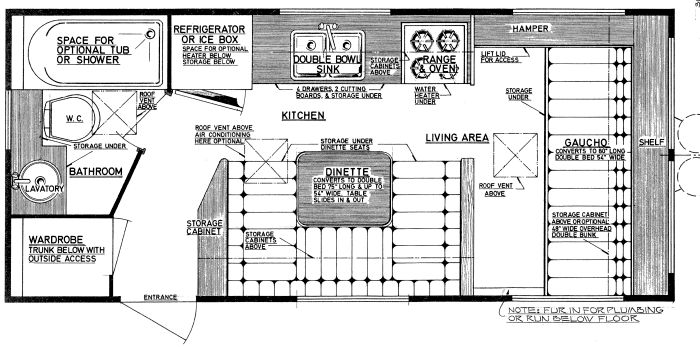

Niagra trailer floor plan
