Rainier

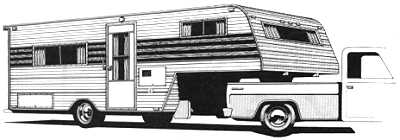

a 17' 5th wheel trailer
Rainier Plans & Patterns package: $54.00
| Specifications: | |
|---|---|
| Trailer length overall | 17'4" |
| Trailer width overall | 7'0" |
| Interior length overall | 16'4" |
| Interior width overall | 6'8" |
| Interior height (headroom) | 6'4" |
| Balcony area height (inside) | 41" |
| Dry weight (estimated) | 2800 lbs. |
| Hitch weight (estimated) | 775 lbs. |
| Ground to roof height | 8'2" |
| Fresh water capacity | 20 min./30 max. gallons |
| Holding tank capacity | 30 gallons |
| LPG capacity | 5 min./10 max. gallons |
| Sleeping capacity | 4 adults |
| Ground to frame clearance | 13" |
