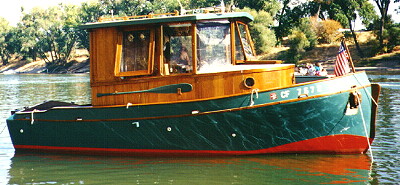

Bo-Jest
|
#784 |
an 18' pocket cruiser |
Build in PLYWOOD |
Characteristics |
Length overall |
17'-10" |
Length waterline |
17'-0" |
Beam |
7'-11" |
Draft (inboard version) |
21" |
Draft (outboard version) |
14" |
Displacement |
2660 |
Hull weight (approx.) |
800 lbs. |
Freeboard forward |
3'-7" |
Freeboard aft |
2'-1" |
Hull depth |
4'-10" |
Height overall (inboard version) |
8'-4" |
Height overall (outboard version) |
7'-8" |
Headroom (pilothouse) |
6'-1" to 6'-4" |
Headroom (trunk cabin) |
4'-1" to 4'-4" |
Cockpit size |
4'-6" x 6'-0" |
Fuel capacity |
26 gals. |
Fresh water capacity |
20 gals. |
Sleeping accommodations |
2 |
Hull type: Hard chine semi-displacement vee-bottom with skeg,
developed for sheet plywood planking.
Power: Single inboard (gasoline or diesel), or long or short shaft outboard, 5
to 10 shaft hp for speeds of 5 to 8 knots.
Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames
from the aft end of the stem to the transom a proportional amount. We do not
recommend increasing the beam.
Trailer: Designed for use with Glen-L Series 2100 boat trailer plans. |
