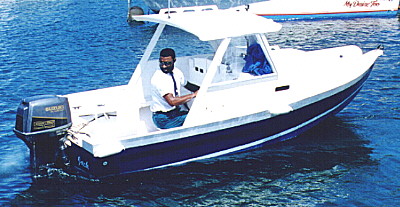

Cabin Skiff

#500 a 16' outboard tabloid cruiser Build in STITCH and GLUE PLYWOOD


Cabin Skiff



Characteristics
Length overall 16'-3"
Beam 6'-9"
Hull depth 2'-6"
Height overall 5'-9"
Headroom under hardtop 5'-0"
Hull weight (approx.) 500 lbs.
Sleeping accommodations 2
Average passenger 2-3
Hull type: Sheet plywood hull developed for Fast-G Stitch-N-Glue construction.
Power: Single long shaft outboard motor to 40 hp. Short shaft motor can be used if the transom is modified.
Can the hull be extended or shortened? No. Some builders have entended the hull but there is not a good way to keep the lines fair and the results have not been consistant. We do not recommend increasing the beam.
Trailer: Designed for use with Glen-L Series 1700 boat trailer plans.

Photographs Bill of Materials Notes Return
