CS-20

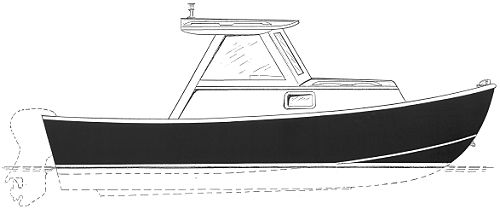

#517 a 20' outboard cabin cruiser Build in STITCH and GLUE PLYWOOD




Characteristics
Length overall 19'-10"
Beam 8'-4"
Hull depth 3'-0"
Hull weight (approx.) 650 lbs.
Height overall 7'-6"
Cabin headroom 4'-6"
Hedroom under hardtop 6'-2"
Cockpit size 6'-4" x 6'-6"
Berth length 6'-5"
Sleeping accommodations 2

Hull type: Vee bottom, developed for sheet plywood, intended for Stitch-n Glue construction.
Power: Outboard motors to 175 HP maximum. Minimum to plane 40 HP. Practical all purpose 80 HP.
Trailer: For use with Glen L Series 3800.
