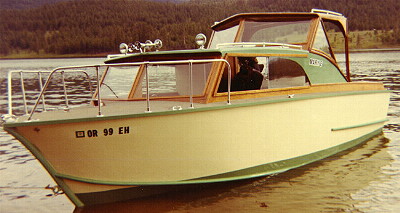

Monsoon

#805 a 22' trailerable express cruiser Build in PLYWOOD




Characteristics
Length overall 22'-3"
Length waterline 19'-4"
Beam 7'-11"
Hull draft 15"
Displacement 3970 lbs.
Hull weight (approx.) 1400 lbs.
Hull depth 4'-0"
Freeboard forward 2'-10"
Freeboard aft 2'-3"
Height overall 7'-9"
Headroom 5'-6"
Cockpit size 8' x 6'
Fuel capacity 50 gals.
Fresh water capacity 20 gals.
Sleeping accommodations 2-3
Hull type: Vee bottom, hard chine plywood double diagonal bottom, sheet plywood sides.
Power: Single centrally located inboard motor.
Can the hull be extended or shortened? No. We also do not recommend increasing the beam.
Trailer: Designed for use with Glen-L Series 3800 boat trailer plans.
