Gentry

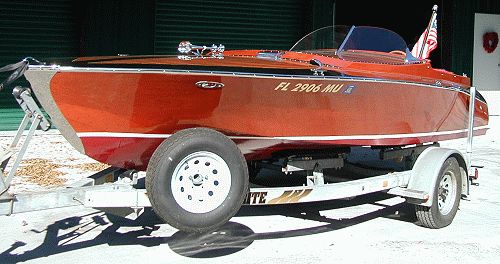

#718 a 17' 4" gentleman's runabout Build in Cold-molded wood


Gentry by Jack Rouse



Characteristics
Length overall 17'-4"
Beam 7'-2"
Hull depth midship 26"
Depth under hatch 35"
Hull weight (approximate) 900 lbs.
Cockpit size 31" x 60"
Passengers 2 or 3
  • Hull Type: Cold-molded plywood with longitudinal veneers. Convex vee bottom with concavity along the chine and generous flaring sides forward blending into a barrel back styled transom tumble home aft.
  • Power: Centrally located inboard inline marine or auto conversion to about 5.6 liters or 350 cu. in.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: For use with GLEN-L SERIES 2100 trailer plans.

Photographs Bill of Materials Notes Return
