Kingpin

#706 a 21' inboard deep vee ski cruiser Build in PLYWOOD

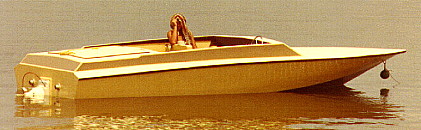

Kingpin home built ski boat



Characteristics
Length overall 21'-0"
Beam 7'-11"
Hull depth 31"
Height overall 4'-0"
Interior headroom 3'-6"
Hull weight (approx.) 1200 lbs.
Cockpit size 6'-6" x 9'-0"
Fuel capacity 50 gals.
Average passengers 4
Sleeping accommodations 2
  • Hull type: Full length deep vee with 12 degree deadrise bottom and flaring topsides. Developed for sheet plywood planking.
  • Power: Inboard, stern mounted engine driving through a v-drive, jet pump, or outdrive unit. Motor and drive should not exceed 1000 lbs.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 3800 boat trailer plans.
