Monte Carlo

#717 an 24 1/2' Classic inboard mahogany runabout Build in Cold-molded wood

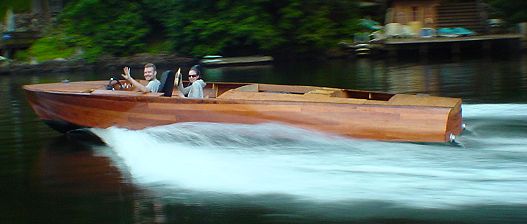

Monte Carlo built by Tom Phillips


Characteristics
Length overall 24'-6"
Beam 7'-6"
Hull depth midship 36"
Hull depth aft 27"
Hull weight (approx.): 1400 lbs.
Fwd cockpit 36" x 5'-10"
Center cockpit 36" x 5'-8"
Aft cockpit 36" x 40"
Passengers 8
  • Hull Type: Cold-molded veneers and plywood. Convex vee bottom with flaring sides and a "barrel-back" transom tumblehome.
  • Power: Centrally located inboard marine engine or automotive conversion, 300-450 cu. in.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: For use with Glen-L Series 5000 trailer plans.
