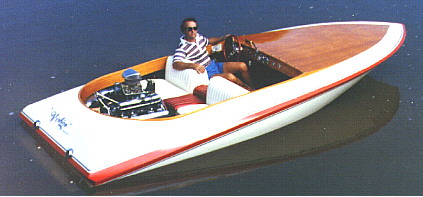

Thunderbolt

#711 a 17' inboard high performance ski boat Build in PLYWOOD




Characteristics
Length overall 17'-3"
Beam 6'-11"
Hull depth 25"
Hull weight (approx.): 650 lbs.
Average passengers 2-4
  • Hull type: Vee bottom with flaring sides that act as anti-trip chines. Developed for sheet plywood planking.
  • Power: Inboard, stern mounted engine driving through a v-drive.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 2100 boat trailer plans.
