Dragonfly

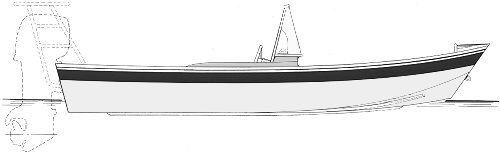

#525 a 17' 6" garvey flats boat Build in STITCH & GLUE PLYWOOD




Characteristics
Length overall 17'-6"
Beam 7'
Hull depth midship 21"
Average passengers 3
Hull weight (approx.) 550 lbs.
Displacement 6" @ 1850 lbs.
Cockpit size 42" x 54"
  • Power: Outboard motors 40-60 HP for normal use: 135 HP maximum.
  • Hull type: Garvey, developed for sheet plywood planking with flat bottom aft and vee forward.
  • Can the hull be extended or shortened? No. We also do not recommend increasing the beam.
  • Trailer: Designed for use with GLEN-L SERIES 1700 boat trailer plans.
