Fisherman

#554 a 13' outboard utility boat Build in PLYWOOD

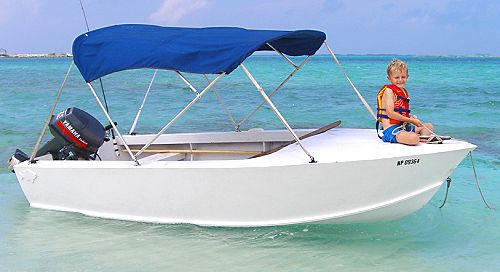

Fisherman built by Michael Toogood



Characteristics
Length overall 13'-0"
Beam 5'-9"
Hull depth 27"
Average passengers 1-4
Hull weight (approx.): 275 lbs.
  • Hull type: Vee bottom hard chine hull developed for sheet plywood planking.
  • Power: Short shaft outboard motor to 45 hp. Long shaft motor can be used if transom modified.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 650 boat trailer plans.
