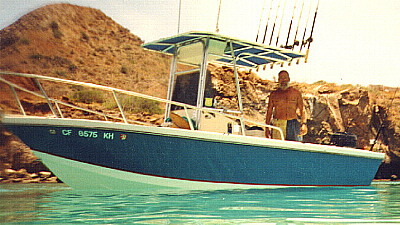

Kingfisher

#559 an 18' center console sport fishing boat Build in PLYWOOD




Characteristics
Length overall 18'-0"
Beam 7'-6"
Hull draft 10"
Hull depth 3'-3"
Average passengers 2-4
Hull weight (approx.) 800 lbs.
Cockpit size 14'-8" x 6'-5"
Fuel capacity 40 gal. maximum
  • Hull type: Full length 18o deep vee with lift strakes, reverse curve at chine, and radiused keel section developed for sheet plywood planking.
  • Power: Single or twin long shaft outboard motor to 175 hp maximum. Inboard stern mounted inboard/outboard to 750 lbs. maximum. Power trim and/or trim tabs recommended for high-speed use and for larger powerplants.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 2100 boat trailer plans.

Photographs Bill of Materials Return
