Building the Picklefork Pictorial

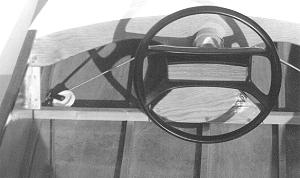

Outboard boat plans Fig. 33: Steering system at the dash beam. The cables lead under the floorboard to the aft pulleys as shown in the following.

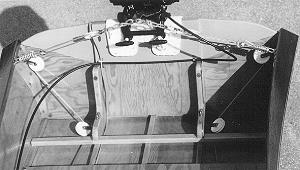

Outboard boat plans Fig. 34: Steering cable pulley locations at the transom. Connection to the outboard motor will vary depending on the make of motor.

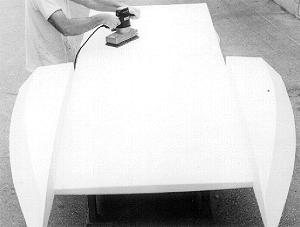

Outboard boat plans Fig. 35: The bottom must be sanded between coats of primer to eliminate ripples and provide a smooth surface for the finish coat.

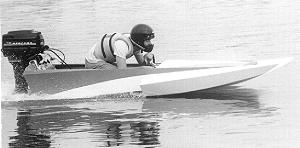

Outboard boat plans Fig. 36: Let your imagination run wild as to the color scheme and contours of the contrasting paint lines. The original was done with red and white exterior with natural interior and floorboards.
