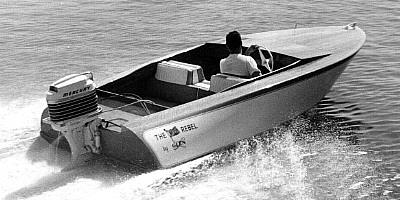

Rebel
|
| #567 |
a 15' outboard runabout and ski
boat |
Build in PLYWOOD |
| Characteristics |
| Length overall |
14'-10" |
| Beam |
6'-4" |
| Hull depth |
25" |
| Average passengers |
1-4 |
| Hull weight (approx.) |
400 lbs. |
- Hull type: Vee bottom hard chine hull developed for sheet plywood
planking.
- Power: Short shaft outboard motor to 80 hp. Long shaft motor can be used if
transom modified.
- Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the
frames from the aft end of the stem to the transom a proportional amount. We do
not recommend increasing the beam.
- Trailer: Designed for use with Glen-L Series 1000 boat trailer plans.
|
