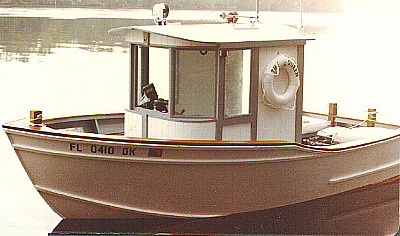

Sherwood Queen

#569 a 15 1/2' mini tug boat Build in PLYWOOD




Characteristics
Length overall 15'-6"
Beam 7'-4"
Hull depth 3'-11"
Height overall 7'-4"
Average passengers 2-3
Hull weight (approx.) 600 lbs.
Draft outboard version (approx.) 8"
  • Hull type: Vee bottom hard chine hull developed for sheet plywood planking.
  • Power: Single short-shaft outboard or inboard motor to 10 hp. Long shaft motor can be used if transom is modified.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 2100 boat trailer plans.
