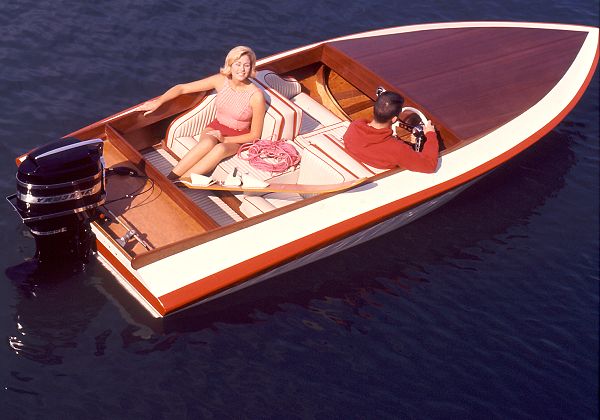

Stiletto

#571 a 16' outboard ski boat Build in PLYWOOD




Characteristics
Length overall 16'-0"
Beam 6'-6"
Hull depth 26"
Average passengers 1-4
Hull weight (approx.) 440 lbs.
Cockpit size 4'9" wide x 5'6" long
  • Hull type: Vee bottom hard chine hull developed for sheet plywood planking.
  • Power: Short shaft outboard motor to 100 hp. Long shaft motor can be used if transom modified.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 1000 boat trailer plans.
