Tiny Titan Construction

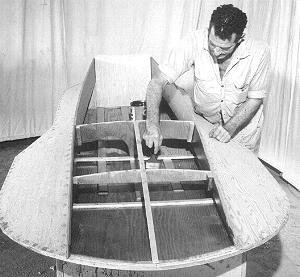

Fig. 16: The inside of the hull should be coated with an anti-rot preservative or other treatment before installing the forward deck or cowl covering.

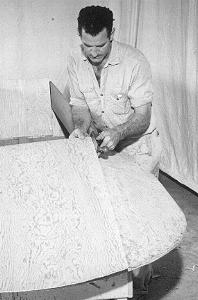

Fig. 17: The cowl plywood is fitted in one side of the coaming rabbet and tacked in place while the other side is fitted.

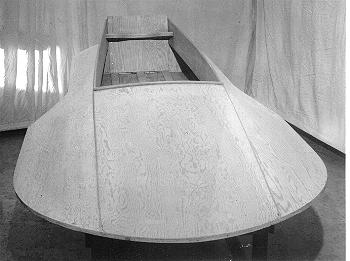

Fig. 18: The completed trimmed hull is ready for paint or fiberglassing. The transom knee is installed 5 1/2" from the top edge of the transom, or closer, depending on the outboard motor used. The cap strip at the dash projects about 3/4" above the decking and covers the exposed edge of the forward decking.
