Fancy Free Notes

Centerboard thickness: 1" steel (469 lbs.). An additional 150 lbs minimum additional ballast is fitted inside the hull.

Contents of Rigging Kit:

  • 1 - Bobstay: 7/32" 1 x 19 S.S. 4'6" 7/16" eye to 3/8" turnbuckle
  • 2 - Bowsprit shrouds: 1/8" 1 x 19 S.S. 6'9" togglefork to 1/4" turnbuckle
  • 1 - Forestay: 5/32" 1 x 19 S.S. 20'10" togglefork to 1/4" turnbuckle
  • 2 - Upper shrouds: 5/32" 1 x 19 S.S. 19'7" togglefork to 1/4" turnbuckle
  • 2 - Lower shrouds: 1/8 " 1 x 19 S. S. 12'3 " togglefork to 1/4" turnbuckle
  • 140' - 5/16" polyester yacht braid
  • 130' - 3/8" polyester yacht braid

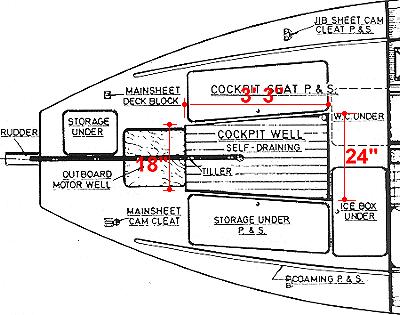

Cockpit size

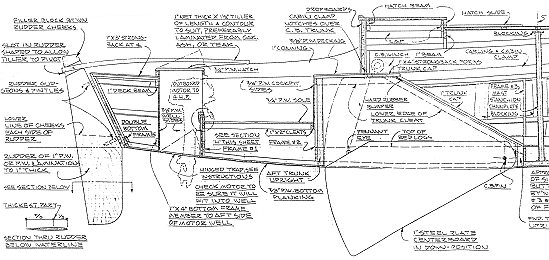

Construction Profile - Detail
