Glen-L 12 |
||
|---|---|---|
| #116 | a 12' sloop | Build in PLYWOOD |
| Characteristics | |||
|---|---|---|---|
| Length overall | 12'-0" | ||
| Beam | 5'-3" | ||
| Depth amidships | 2'-4" | ||
| Draft (board up) | 7" | ||
| Draft (board down) | 3'-0" | ||
| Weight (approx.) | 225 lbs. | ||
| Cockpit size | 7'-3" x 3'-3" | ||
| Average passengers | 2-4 | ||
| Sail area | Main - 60 sq. ft. Jib - 31 sq. ft. Total - 91 sq. ft. |
||
| Hull type: Vee bottom hard chine hull developed for 1/4"
sheet plywood planking. Sail type: Jibhead sloop with daggerboard. Power: Short shaft outboard motor to 3 hp. Trailer: Designed for Glen-L Series 650 boat trailer plans. |
|||

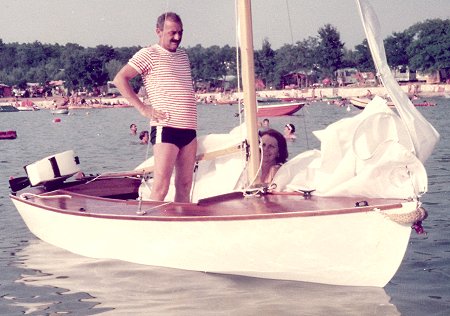

| Photographs | Bill of Materials | Return |
|---|
