Glen-L 15 Notes

Glen-L boat plans

Sections

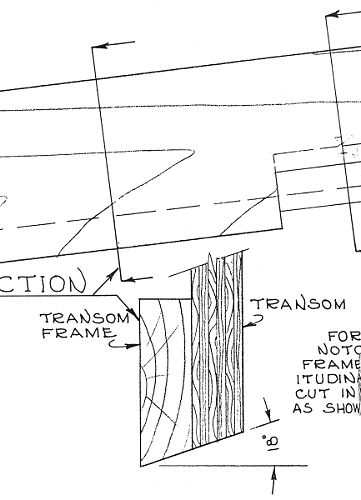

The above section drawing shows the bottom edge of the transom as seen from the side. The outside (plywood) is smaller that the inside (lumber). The transom is easiest built to the largest (inside) dimension and the angle cut after assembly.
See: Table saw jig for a method of cutting the angle.
NOTE: Link will open in new window; close window to return to this page.
