Aquarian |
||
|---|---|---|

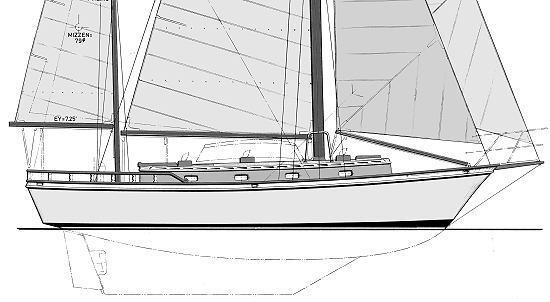

| #250 | a 35' ketch or cutter rigged sailboat | Build in STEEL |
| Characteristics | |||
|---|---|---|---|
| Length overall (on deck) | 35'-0" | ||
| Length overall (with bowsprit) | 38'-3" | ||
| Length waterline | 28'-4" | ||
| Beam | 12'-0" | ||
| Draft | 5'-0" | ||
| Freeboard forward | 4'-11" | ||
| Freeboard aft | 3'-8" | ||
| Displacement (at D.W.L.) | 20,200 lbs. | ||
| Ballast weight | 7,000 lbs. | ||
| Weight of steel components (estimated) | 8,000 lbs. | ||
| Cabin headroom | 6'-2" to 6'-4" | ||
| Fuel capacity | 70 gals. | ||
| Water capacity | 160 gals. | ||
| Sleeping accommodations | 5 | ||
| Sail area - Cutter | Main - 333 sq. ft. Foretriangle - 414 sq. ft. Total - 747 sq. ft. |
||
| Sail area - Ketch | Main - 294 sq. ft. Foretriangle - 360 sq. ft. Mizzen - 79 sq. ft. Total - 733 sq. ft. |
||
| Hull type: Multi-chine sheet steel hull with full length
internal ballast keel. Ballast: Concrete and scrap steel. Sail type: Masthead cutter or ketch rig with bowsprit and club-footed jib. Power: Single inboard diesel engine of 30-35 shp with reduction gear to suit. Construction: Welded steel hull, keel, deck and cockpit with concrete and scrap steel ballast. Cabin superstructure, cockpit, and interior of lumber and plywood with exterior surfaces sheathed in fiberglass or equivalent. |
|||
