Coaster |
||
|---|---|---|

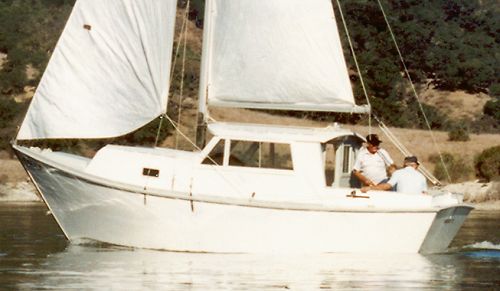

| #107 | a 25' trailerable motor sailer | Build in PLYWOOD |
| Characteristics | ||
|---|---|---|
| Length overall | 25'-2" | |
| Length waterline | 20'-0" | |
| Beam | 8'-0" | |
| Bottom width | 6'-10" | |
| Draft (board up) | 23" | |
| Draft (board down) | 4'-1" | |
| Freeboard forward | 4'-10" | |
| Freeboard aft | 3'-2" | |
| Displacement (at D.W.L.) | 4900 lbs. | |
| Ballast weight | 1295 lbs. | |
| Fuel capacity | 20 gals. | |
| Water capacity | 40 gals. | |
| Height (board up to cabin top) | 9'-2" | |
| Headroom (at windshield) | 6'-2" min. | |
| Sleeping accommodations | 2 adults, 2 children | |
| Cockpit size | 6' x 6'-6" | |
| Sail area | Main - 113 sq. ft. Jib - 113 sq. ft. Total - 226 sq. ft. |
|
| Hull type: Flat bottom, hard chine, dory-type, with
ballast/keel and centerboard, developed for sheet plywood planking (1/2"
sides, 3/4" bottom). Ballast: Skeg-mounted lead bars plus 3/8" steel centerboard. Sail type: Masthead rigged sloop. Power: Inboard gasoline or diesel, or long shaft outboard in cockpit well, 6 to 16 shaft horsepower. Trailer: Designed for use with Glen-L Series 6000 boat trailer plans. |
||
