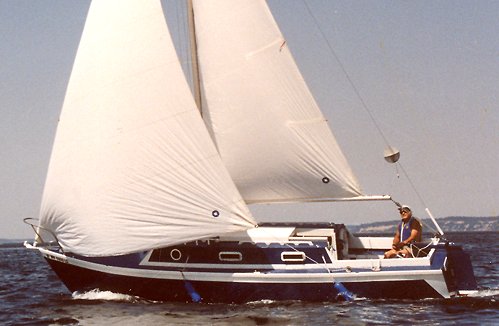

Glen-L 25
|
||
|---|---|---|
| #123, #124 #125, #126 |
trailerable single or double cabin cruising sailboat | Build in PLYWOOD or FIBERGLASS |
| Characteristics | Glen-L 25PW | Glen-L 25FG |
|---|---|---|
| Length overall | 25'-0" | 25'-0" |
| Length waterline | 22'-3" | 22'-4" |
| Beam | 7'-11" | 7'-11" |
| Draft (board up) | 2'-1" | 2'-4" |
| Draft (board down) | 5'-0" | 5'-3" |
| Draft (fixed keel) | N.A. | 4'-0" |
| Freeboard forward | 3'-7" | 3'-6" |
| Freeboard aft | 2'-8" | 2'-7" |
| Displacement (at D.W.L.) | 3500 lbs. | 3950 lbs. |
| Hull weight (approx.) | 1600 lbs. | 1800 lbs. |
| Water capacity | 10 gals. | 20 gals. |
| Height (board up to cabin top) | 6'-7" | 6'-9" |
| Cabin headroom (fwd) | 5'-0" | 5'-0" |
| Cabin headroom (aft) | 4'-6" | 4'-6" |
| Sail area | Main - 127.5 sq. ft. Jib - 117.5 sq. ft. Genoa - 167 sq. ft. Total - 245/294.5 sq. ft. |
|
| Hull type, PLYWOOD version: Combination centerboard/ballast
keel for stability and ease of trailering. Hull form of semi-round bottom and
sides, with soft chine between. Developed for 3/8" sheet plywood
planking. Hull type, FIBERGLASS version: Round bilge with combination centerboard/keel or fixed ballast keel. Developed for "one-off" fiberglass construction using fiberglass planking or PVC core with fiberglass laminates. Sail type: Masthead sloop Power: Outboard motor to 10 hp on transom bracket. Trailer: Designed for use with Glen-L 3800 boat trailer plans. |
||
| Photographs | Bill of Materials: Glen-L 25PW / Glen-L 25FG |
