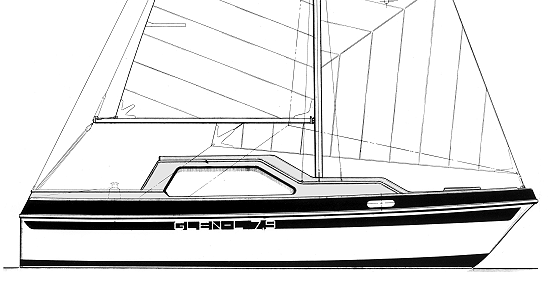

Glen-L 7.9 |
||
|---|---|---|
| #113 | a 26' trailerable sloop | Build in FIBERGLASS |
| Characteristics | |||
|---|---|---|---|
| Length overall | 25'-11 1/2" (7.9M) | ||
| Waterline length | 22'-6" | ||
| Beam | 7'-11 1/2" | ||
| Freeboard forward | 4'-1" | ||
| Freeboard aft | 3'-5" | ||
| Draft (board up CB version) | 2'-6" | ||
| Draft (board down CB version) | 5'-0" | ||
| Draft (fixed keel version) | 4'-0" | ||
| Height (board up to cabin top, CB) | 8'-3" | ||
| Height (keel version to cabin top) | 9'-9" | ||
| Displacement | 4200 lbs. | ||
| Ballast weight | 1200 lbs. | ||
| Water capacity | 20 gals. | ||
| Fuel capacity | 10 gals. | ||
| Cabin headroom | 6'-2", 5'-0" | ||
| Cabin size (nominal) | 16'-6" x 7'-0" | ||
| Cockpit size | 6'-6" x 5'-6" | ||
| Sleeping accommodations | 4-5 | ||
| Sail area | Main - 120 sq. ft. Jib - 135 sq. ft. Totals - 255 sq. ft. |
||
| Hull type: Round bilge with combination centerboard/keel or
fixed ballast keel. Developed for "one-off" fiberglass construction
using fiberglass planking or PVC core with fiberglass laminates. Sail type: Masthead sloop. Power: Outboard motor to 10 hp in transom well or on transom bracket, inboard engine to 10 hp, gasoline or diesel, not to exceed 200 lbs. Trailer: Designed for use with Glen-L Series 6000 boat trailer plans. |
|||
