Kodiak

#210 a 29' fiberglass motorsailer Build in FIBERGLASS

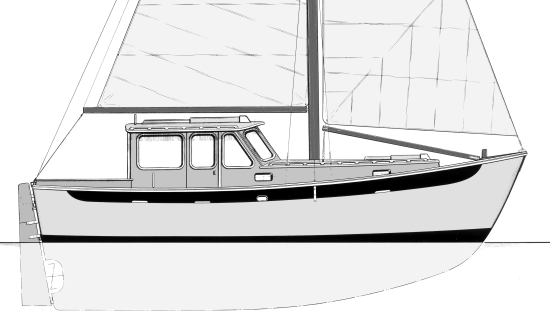

Kodiak motor sailer plans and patterns

Characteristics
Length overall 28'-6"
Length waterline 25'-5"
Beam 9'-11"
Draft 4'-0"
Freeboard forward 5'-3"
Freeboard aft 3'-5"
Displacement (at D.W.L.) 11,000 lbs.
Ballast weight 4200 lbs.
Fuel capacity 60 gals.
Water capacity 60 gals.
Height (to cabin top) 11'-2"
Cabin headroom 6'-4"
Range 500 miles
Cockpit size 5'-6" x 8'-0"
Deckhouse size 6'-3" x 6'-9"
Sleeping accommodations 5
Sail area Main (actual) - 190 sq. ft.
Jib (actual) - 167 sq. ft.
Foretriangle - 194 sq. ft.
Total (actual) - 357 sq. ft.
Main & foretriangle - 384 sq. ft.
Hull type: Full displacement round bilge hull form with maximum hull speed of 7 knots. Designed for "one-off" fiberglass construction using either PVC foam sandwich core or fiberglass planking with fiberglass laminates.
Ballast: Lead preferred, steel optional.
Sail type: Masthead sloop rig with self-tacking jib. Other headsails optional.
Power: Single diesel or gasoline powered engine of approx. 15 continuous horsepower (20 to 30 bhp), not exceeding 500 lbs. through straight shaft to max. 24" dia. propeller.
