Lodestar |
||
|---|---|---|
| #252 | a 55' steel cruising sailboat | Build in STEEL |
| Characteristics | |||
|---|---|---|---|
| Length overall (on deck) | 55'-0" | ||
| Length overall (with bowsprit) | 58'-11" | ||
| Length waterline | 45'-0" | ||
| Beam | 15'-7" | ||
| Draft (keel version) | 7'-0" | ||
| Draft (C.B. version-board up) | 5'-8" | ||
| Draft (C.B. version-board down) | 11'-3" | ||
| Freeboard forward | 6'-10" | ||
| Freeboard aft | 5'-10" | ||
| Displacement (at D.W.L.) | 57,350 lbs. | ||
| Ballast weight | 17,200 lbs. | ||
| Weight of steel components (estimated) | 25,000 lbs. | ||
| Cabin headroom | 6'-5 to 6'-9" | ||
| Fuel capacity | 430 gals. | ||
| Water capacity | 640 gals. | ||
| Holding tank capacity | 490 gals. | ||
| Sleeping accommodations | 6-7 | ||

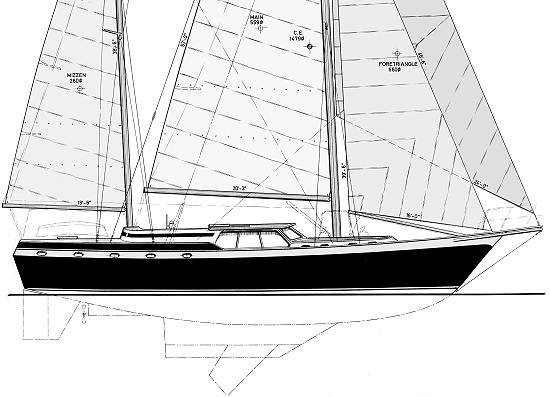

| Sail area | Main - 559 sq. ft. Foretriangle - 660 sq. ft. Mizzen - 260 sq. ft. Total - 1479 sq. ft. |
||
| Hull type: Multi-chine sheet steel, internally ballasted hull,
with separate keel and skeg-mounted rudder. Sail type: Masthead ketch double headsail rig with club-footed jib. Power: Single inboard diesel engine of approximately 75 shp. Ballast: Concrete and scrap steel. |
|||
