Lord Nelson-FG
|
||
|---|---|---|
| #211 #212 |

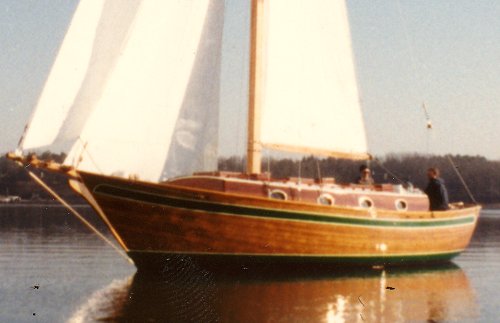

a 33' world cruising sailboat | Build in PLYWOOD or FIBERGLASS |
| Characteristics | |||
|---|---|---|---|
| Length overall (on deck) | 33'-1" (10.08 M) | ||
| Length overall (with bowsprit) | 37'-6" | ||
| Length waterline | 26'-4" (8.03 M) | ||
| Beam | 11'-1" (3.38 M) | ||
| Draft | 5'-0" (1.52 M) | ||
| Freeboard forward | 5'-3" | ||
| Freeboard aft | 3'-10" | ||
| Height (board up to cabin top) | 4'-3" | ||
| Displacement (at D.W.L.) | 16,200 lbs. | ||
| Ballast weight | 6500 lbs. | ||
| Cabin headroom | 6' to 6'-5" | ||
| Fuel capacity (*) | 60 gals. | ||
| Water capacity (*) | 110 gals. | ||
| Sleeping accommodations | 4-6 | ||
| Sail area | Main - 298 sq. ft. Foretriangle - 353 sq. ft. Total - 651 sq. ft. |
||
| Hull type: Hull type: Round bilge hull form with fixed ballast
keel. Plans available for "one-off" fiberglass construction using PVC
foam sandwich core or fiberglass planking with fiberglass laminates, or for
molded plywood, with cold-molded veneers as an alternate. Ballast: Lead, iron, or steel scrap. Sail type: Masthead cutter (double-head rig) or sloop. Power: Single inboard diesel or gasoline engine of 10 to 20 shp. |
|||
