Starpath 44-FG
|
||
|---|---|---|
| #215 #216 |
a 44' aft cabin mid-cockpit sailboat | Build in COLD-MOLDED PLYWOOD or FIBERGLASS |
| Characteristics | |||
|---|---|---|---|
| Length overall | 43'-11" | ||
| Length waterline | 35'-10" | ||
| Beam | 14'-1 1/2" | ||
| Draft (keel version) | 6'-0" | ||
| Draft (C.B. version-board up) | 4'-6" | ||
| Draft (C.B. version-board down) | 9'-9" | ||
| Freeboard forward | 6'-0" | ||
| Freeboard aft | 5'-1" | ||
| Displacement (at D.W.L.) | 30,000 lbs. | ||
| Ballast weight | 10,800 lbs. | ||
| Cabin headroom | 6'-2" to 6'-7" | ||
| Fuel capacity | 190 gals. | ||
| Water capacity | 200 gals. | ||
| Sleeping accommodations | 8 | ||
| Sloop sail area | Main - 479 sq. ft. Foretriangle - 486 sq. ft. Total - 965 sq. ft. |
||

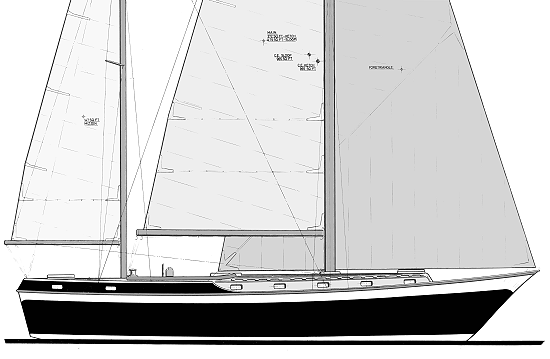

| Ketch sail area | Main - 372 sq. ft. Foretriangle - 446 sq. ft. Mizzen - 147 sq. ft. Total - 965 sq. ft. |
||
| Hull type: Round bilge hull form with fixed ballast keel. Plans
available for "one-off" fiberglass construction using PVC foam
sandwich core or fiberglass planking with fiberglass laminates, or for molded
plywood, with cold-molded veneers as an alternate. Sail type: Masthead rig in sloop or ketch configurations. Ballast: Lead, iron, or steel. Power: Single inboard diesel or gasoline engine of 30 to 50 shp with suitable reduction gear. |
|||
