Steelaway

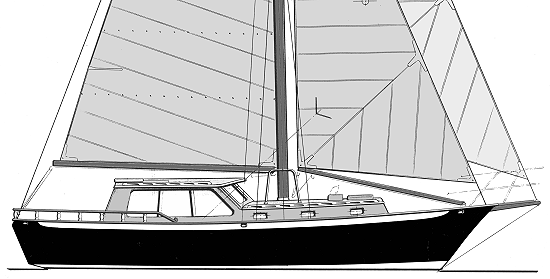

#254 a 35' steel coastal cruising sailboat Build in STEEL

Steelaway steel sailboat plans

Characteristics
Length overall (on deck) 35'-0"
Length overall (with bowsprit) 38'-3"
Length waterline 28'-4"
Beam 12'-0"
Draft 5'-0"
Freeboard forward 4'-11"
Freeboard aft 3'-8"
Displacement (at D.W.L.) 20,200 lbs.
Ballast weight 7,000 lbs.
Weight of steel components (estimated) 8,000 lbs.
Cabin headroom 6'-3 to 6'-5"
Fuel capacity 120 gals.
Water capacity 170 gals.
Sleeping accommodations 5
Sail area Main - 333 sq. ft.
Foretriangle - 414 sq. ft.
Total - 747 sq. ft.
Hull type: Multi-chine sheet steel hull with full length internal ballast keel.
Sail type: Masthead cutter rig with bowsprit and club-footed jib.
Power: Single inboard diesel engine of 30-35 shp with reduction.
Ballast: Concrete and scrap steel.
Construction: Welded steel hull, keel, deck, and cockpit with concrete and scrap steel ballast. Cabin superstructure, cockpit, and interior of lumber and plywood with exterior surfaces sheathed in fiberglass or equivalent.
