Pedal-It

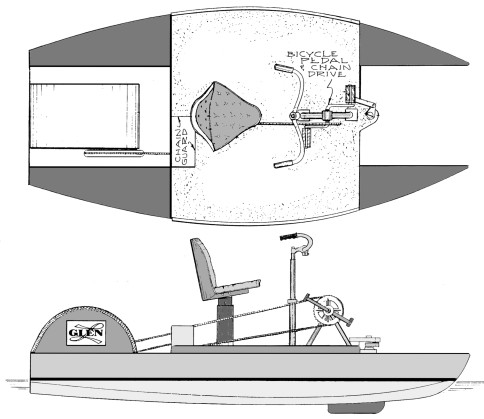

#514 a 9'-4" watercraft for pedal propulsion Build in STITCH & GLUE PLYWOOD




Characteristics
Length overall 9'-4"
Beam 4'-6"
Hull depth 13"
Total weight (test model) 164 lbs.
Displacement at 6" waterline 308 lbs.
Bridge deck size 4' x 4'-6"
Average passengers 1
  • Hull type: Two vee bottom pontoons or tunnel hulls connected by a bridge deck. Hulls are developed for sheet plywood with Stitch and glue construction.
  • Power: Bicycle pedals, sprocket, and chain driving a stern mounted paddlewheel.
  • Can the hull be extended or shortened? No. We also do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 650 boat trailer plans.
