PowerYak

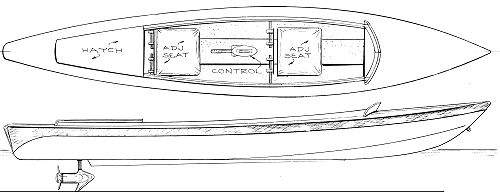

#507 a 17' Electric powered kayak Build in STITCH & GLUE PLYWOOD




Characteristics
Length overall 16'-10"
Beam 37"
Hull Draft at 500 lbs 3 1/2"
Midship hull depth 14"
Hull weight (approx.) 110 lbs.
Cockpit size (approx.) 2' x 7'-6"
Average passengers 1 or 2
  • Hull type: Hard chine vee bottom hull developed for 1/4" sheet plywood planking assembled by the Stitch and Glue method.
  • Power: Electric trolling motor (ETM) modified to mount inside the boat. operating on deep cycle storage batteries of 12 to 24 Volts.
  • Can the hull be extended or shortened? No. We also do not recommend increasing the beam.
