Double Eagle

#788
#789

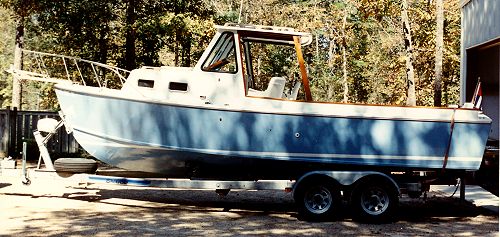

a 23' trailerable lobster boat Build in
ALUMINUM
or PLYWOOD


Lobster boat



Characteristics
Length overall 23'-0"
Length waterline 20'-8"
Beam 7'-11"
Draft (inboard version) 2'-5"
Draft (outboard & I/O version) 1'-6"
Displacement 4200 lbs.
Hull weight (approx.) 1200 lbs.
Hull depth 4'-11"
Freeboard forward 3'-8"
Freeboard aft 2'-3"
Height overall 9'-2"
Headroom (cabin-approx.) 4'-9"
Headroom (shelter top-approx.) 6'-3"
Cockpit size 13'-0" x 7'-0"
Cockpit depth 29" to 33"
Fuel capacity (inboard) Alum. 76 gals., Plywood 64 gals.
Fuel capacity (I/O) Alum. 82 gals., Plywood 68 gals.
Fuel capacity (outboard) Alum. 88 gals., Plywood 66 gals.
  • Hull type: Hard chine, vee bottom with skeg, developed for sheet plywood or aluminum.
  • Power: Single inboard engine to 875 lbs., or single I/O engine from 400 to 600 lbs., or long shaft outboard (single or twin) from 200 to 325 lbs.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 3800 boat trailer plans.

Photographs Bill of Materials:
Aluminum / Plywood
Notes Return
