Key West

#800 a 23' center console sport fisherman Build in PLYWOOD

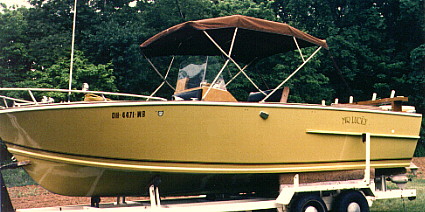

Key West center console fishing boat



Characteristics
Length overall 22'-9"
Length waterline 19'-10"
Beam 7'-11"
Draft 15"
Displacement 4000 lbs.
Hull weight (approx.) 1300 lbs.
Hull depth 4'-1"
Freeboard forward 2'-11"
Freeboard aft 2'-3"
Height overall 6'-5"
Cockpit size 20'-0" x 6'-0"
Cockpit depth 24" to 30"
Fuel capacity 60 gals.
  • Hull type: Vee bottom, hard chine hull, with bulbous keel and reverse curve at chine. Bottom designed for double diagonal planking, sides developed for sheet plywood planking.
  • Power: Single centrally mounted inboard engine to 1200 lbs., single or twin outboards to 400 lbs., or stern mounted inboard driving through an outdrive, jetdrive, or vee drive, not exceeding 700 lbs. Reduction gear may be required for inboard engines.
  • Can the hull be extended or shortened? No.
  • Trailer: Designed for use with Glen-L Series 3800 boat trailer plans.
