V-Dory

#656 a 23' power fishing dory
with a vee bottom forward
Build in PLYWOOD

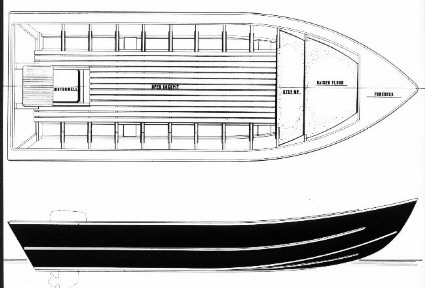

V-Dory Pacific power dory



Characteristics
Length overall (standard) 22'-10"
Length overall (inboard) 22'-0"
Beam 8'-5"
Displacement @ 7" draft 3250 lbs.
Hull weight (approx.) 1100 lbs.
Hull depth forward 4'-2"
Hull depth aft 2'-8"
Bottom width 5'-8"
Minimum recommended power 30 hp
  • Power: Single well-mounted outboard standard. Optional and detailed transom mounted outboard, outdrive (I/O), jet drive, or in-line inboard.
  • Hull type: Flat bottom dory-type hull aft flowing into a vee bottom forward. Developed for sheet plywood planking with outer rub strakes.
  • Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam.
  • Trailer: Designed for use with Glen-L Series 3800 boat trailer plans.
