ADJUSTABLE CAVITATION PLATE OVERRIDE-HOW IT WORKS

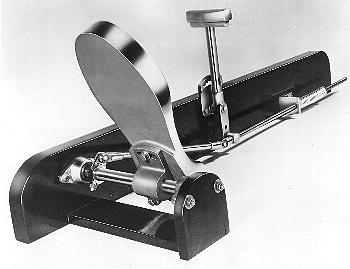

On high speed boats, quick, accurate setting of the cavitation plates is desirable for safety and best performance. Using a combination Foot Control and Control Handle with an override assembly makes such adjustment quick and positive. Usually the cavitation plates are set by the hand control to the desired pitch. However, when quick acceleration is desired, or when the bow of the boat needs to be brought down instantly, the foot control can be depressed to override the hand control. When the foot control is released, the cavitation plate will return to its initial pre-set pitch. Item Numbers given on the illustration indicate the proper parts needed to complete an override assembly. Note: Longitudinal 1/2" rod connecting pedal to arm is not furnished as length may vary.
