Inboard Motor Installations, plate 34

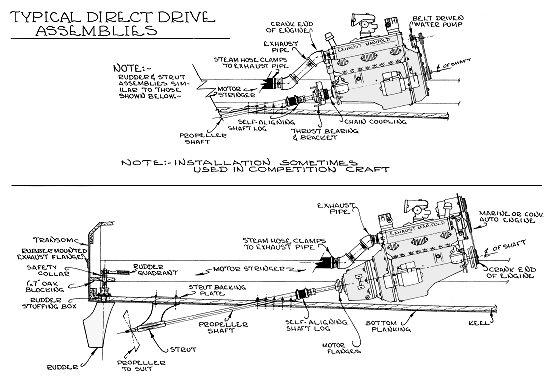

Typical components used in straight shaft centrally located inboard installations. The "bob-tail" (top) version is primarily used in competition craft where a transmission is not necessary. From "Inboard Motor Installations" (See Boatbuilding Books pages)
