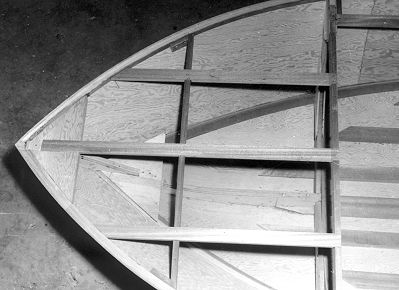

When intermediate deck beams are used, they should be blocked between the sheer clamps as shown. The battens are notched into the frames and deck beams and end against the sheer with a fitted bevel. If you do not wish to see the batten ends notched into the dash beam, the can be glued and fastened to blocking on the forward side of the dash beam. The strongback (center batten) can be partially notched into the breasthook and tapered to make a smooth flowing curve to the stem.

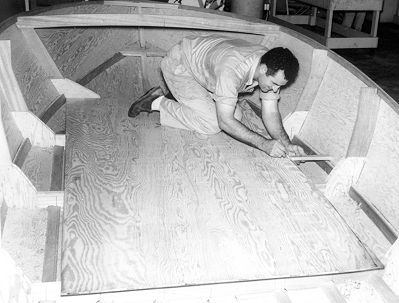

The floorboards are usually fitted soon after the hull has been righted to provide a flat work area for the builder. Here, the buider is using a stick to transfer the outline of the hull side to the floorboard panel. Floorboards are usually in several sections, with a removable center section for bilge inspection. NEXT
