Thunderbolt by Bob Atwater, Seneca, South Carolina

16 November 2010 Update (Cont'd)

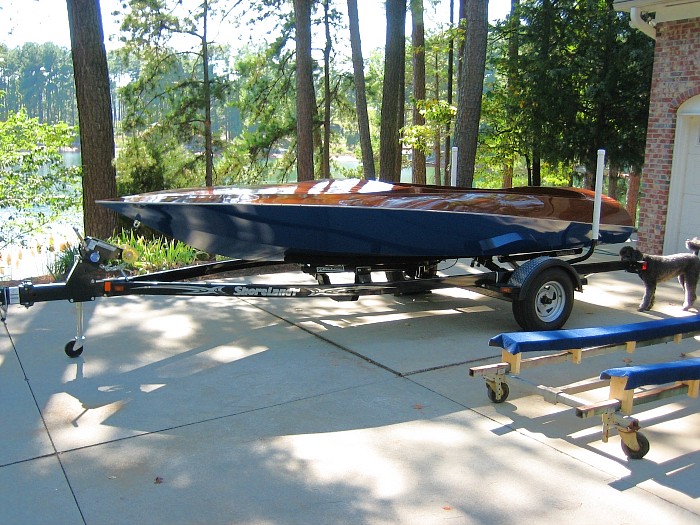

Boat on trailer being inspected by a Poodle.


Most of the fixtures/fittings from the mockup, except for the drive train, are relocated onto and into the hull. Gauges installed and wired.

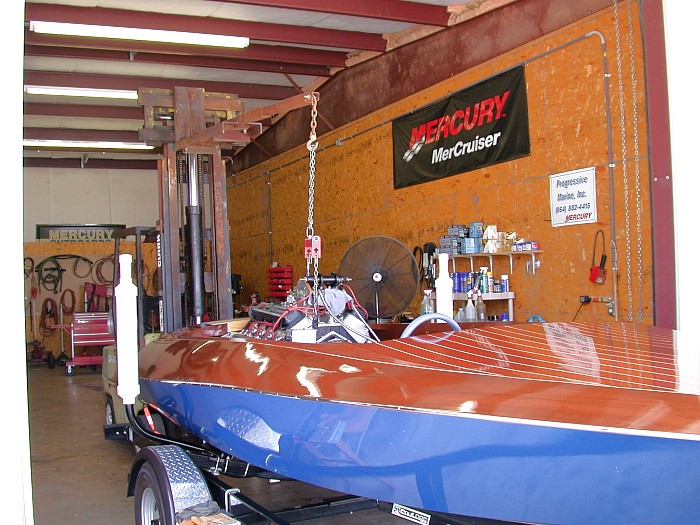

Finally, the drive train is dropped into the hull. The mounting holes in the motor stringers were predrilled using dimensions and locations taken from the mockup. It was necessary to relieve a couple of holes for a final fit.

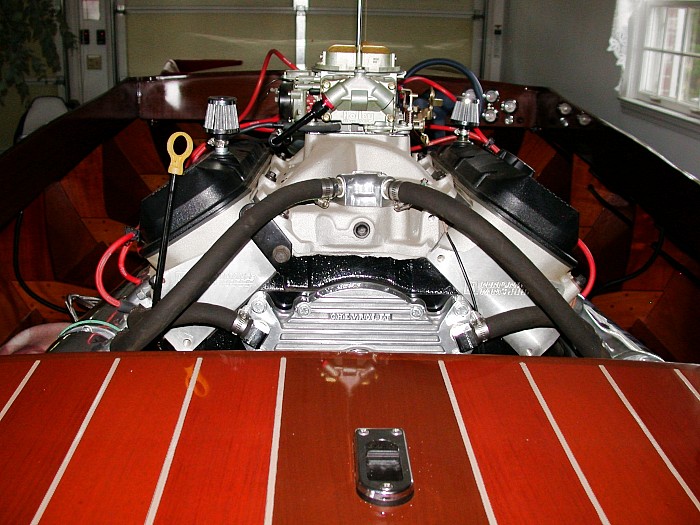

The front of the big block is a bit closer to the rear deck than anticipated. Overall, however, it went quite well.

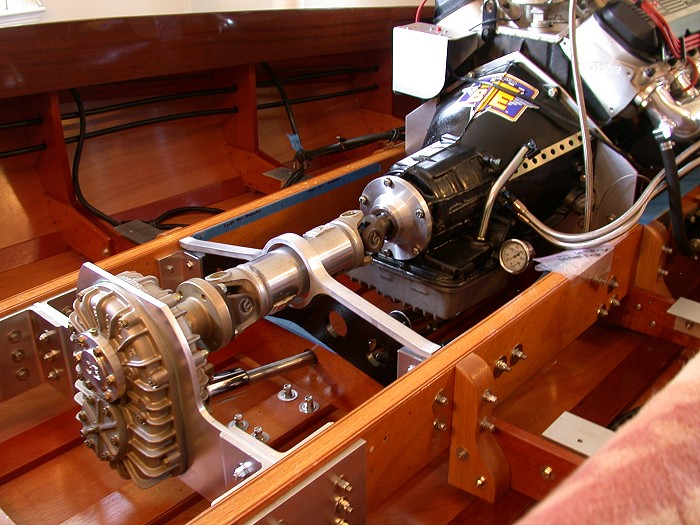

View of the drive train after rebuilding the transmission. Yeah, we managed to tear it up before the boat ever saw water. Somehow there was a snap ring missing on the hardened shaft between the engine and the transmission. Nasty noise.

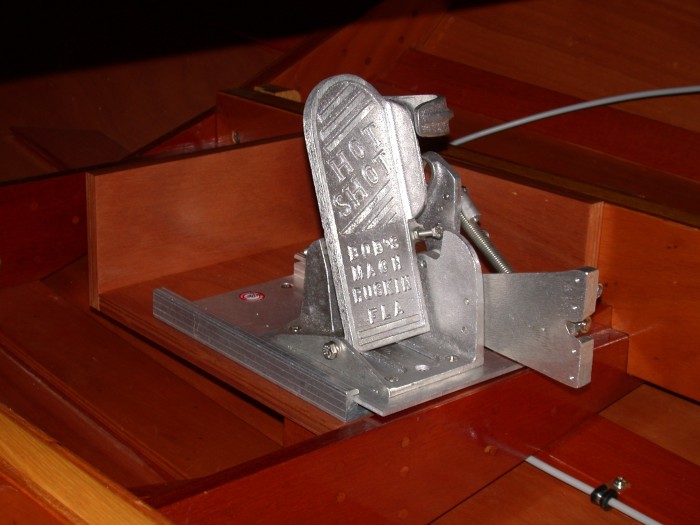

I could not imagine trying to steer, shift and control the speed all with two hands. Therefore, I installed the "Hot Shot" foot throttle. It is very awkward to me as it is for the left foot (will not fit for the right foot). My friend has no problem.

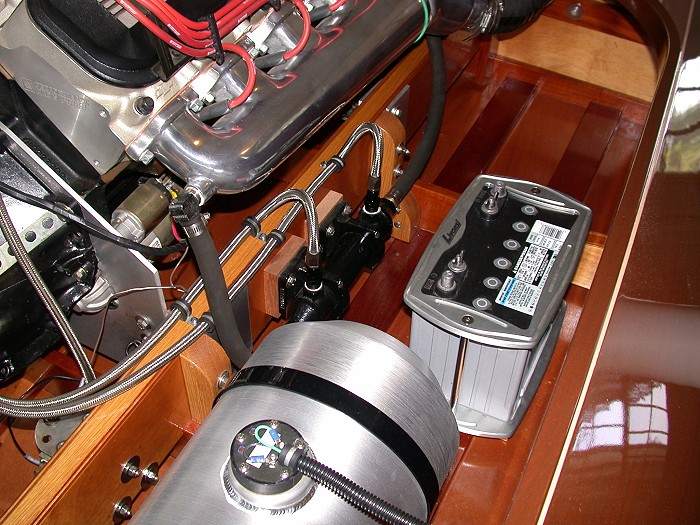

The small cooler is for transmission oil. The tank is one of two 10-gallon aluminum gas tanks frequently seen on Dune Buggies. I could not find an off the shelf tank that would fit down between the fames and motor stringers. Custom fabricated tanks were outside my budget at this point.

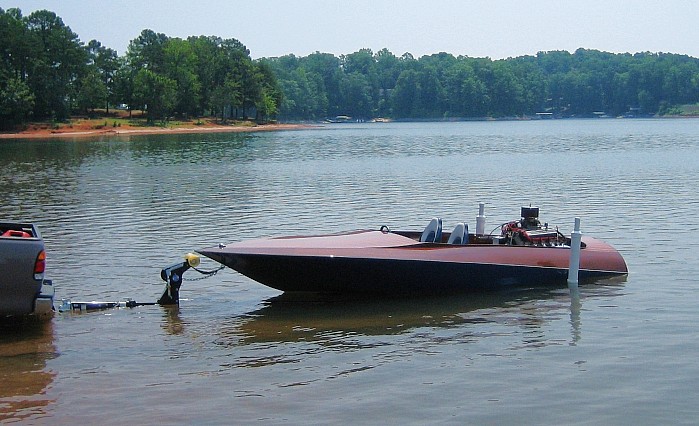

The "Lake Test" in June 2009. I was concerned how the Thunderbolt would sit in the water with a big block in the back. Looked good.

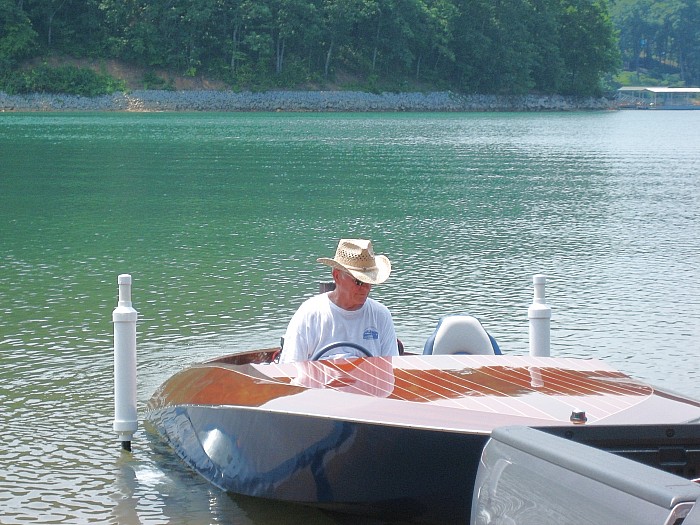

Yours truly checking for leaks. I took the opportunity to crank up the engine and check as much as possible while still over the trailer.


In early 2010 I put the Thunderbolt in the water for its maiden voyage. It was incredibly noisy, not just the engine, but the transmission and v-drive. After a short run, trying to shift from first into second, I thought had torn up the transmission again. Frustrated, I put the Thunderbolt back in storage.

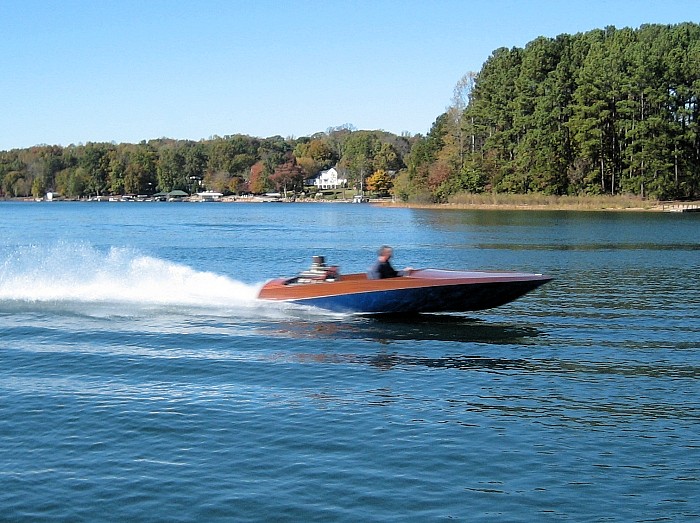

My friend, Tommy, who owns Progressive Marine in Seneca thought I was crazy when I started the project, but fell in love with it as it came together. He asked if he could check it out at his yard. He did. Then he wanted to test it in the water. He did. This photo taken November 9, 2010, is the third time Tommy has been in the water with the Thunderbolt. We had a few minor problems to iron out initially and adjusted the trim plates a couple of times. He is passing by at a leisurely 80 mph turning 4700 rpm on a 12 " diameter, 16 pitch prop and reports that there is plenty of throttle left. He has no problem shifting from first to second as long as he keeps the rpm over 3000 in first at the time he shifts.

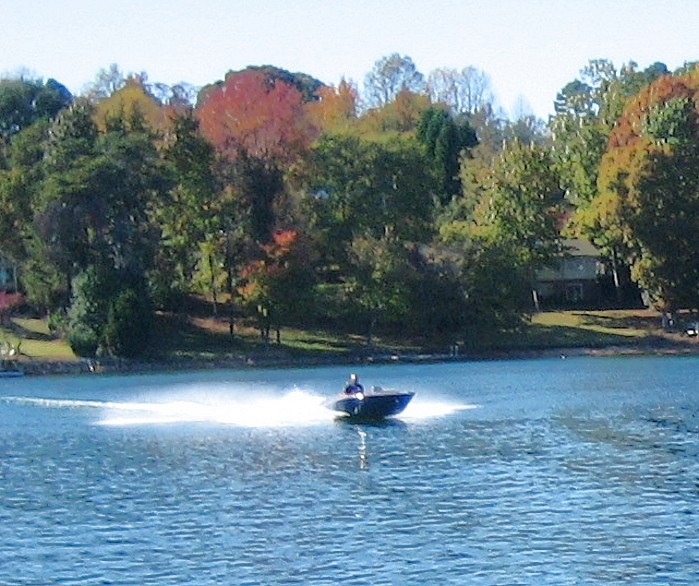

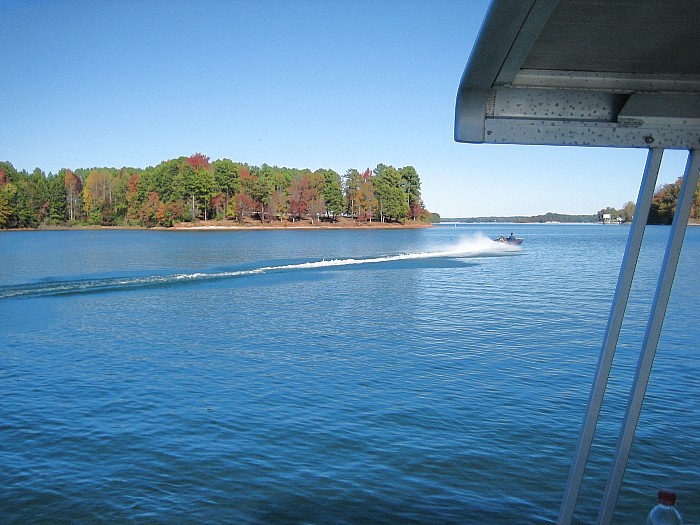

Going away! The Thunderbolt has been put up for the winter. In the Spring, Tommy wants to see how fast he can go from stop to full out. I need a better camera for that. We might tweak it a bit trying a higher pitch prop. After that, I will have to get rid of the Thunderbolt. I have two grandsons, one presently with a driver's license and the other a couple years away. There is no way they will ever be allowed behind the wheel of the Thunderbolt which I expect will scream down the lake at over 100 mph.

Many thanks to Glen-L's staff, Paul Miller and the Glen-L Boatbuilder Forum for the valuable assistance. Building a boat is truly a wonderful experience, which absolutely assures that we will meet some very neat people that would normally not cross our path. The memories of building and running the Thunderbolt will last forever.
