Vera Cruise
by David Ellingson
5-10-06: I've been working on my Vera Cruise several months, sort of in
backwards order. I've been working on the electrical/electronics,
accumulating hardware, etc. so that when the hull is complete all this other
stuff will be complete and ready to install. I bought the frame kit now because
Allyn is retiring and it won't be available in the future. But I
won’t be able to start on the hull for a year or two.
7 Jul 2006
Here are some pictures of the electrical panels that I've been working
on.

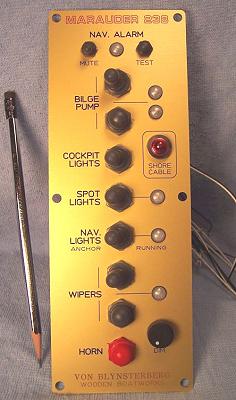

Helm switches: Will be mount on the helm panel adjacent to the GPS and
engine gauges.

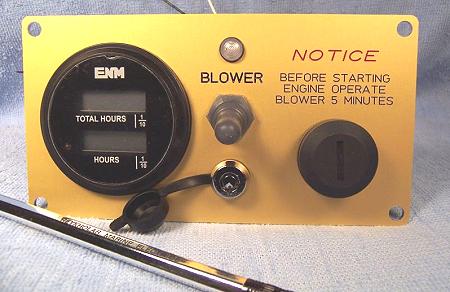

Ignition: Start, stop, ventilation, hourmeters, and stuff.

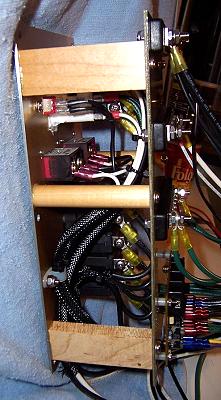

Battery switch.

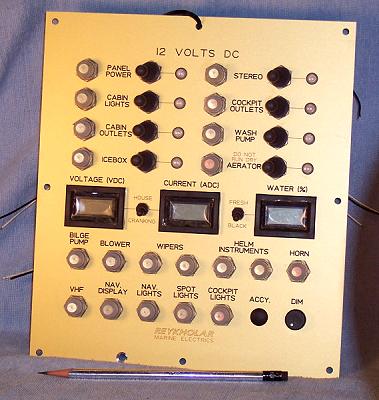

DC panel: The DC distribution panel.

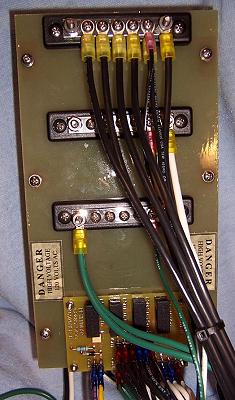

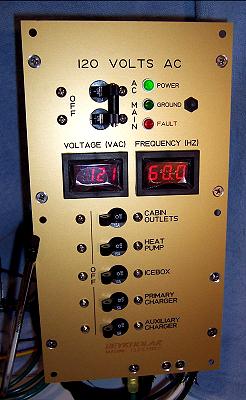

AC panel: The AC distribution panel.
Front Panel Express did the anodizing, machining, and engraving to my specs.
They do a really good job at a very reasonable price, all 5 panels were about
$350 delivered to my door. You should add their link to your
"Supplier" page.
http://www.frontpanelexpress.com/
Next I start on the supporting circuit boards. They perform the signal
conditioning for the panel meters, drive the indicator lamps on on the panels,
and a bunch of other stuff. Once all this is complete I build the helm box. My
plan is to mount all this stuff in/on the helm box then, when the hull is
complete, I just mount the completed helm assembly and finish routing the
wiring around the hull.
David Ellingson
Woodstock, IL
