TNT by Chuck Stevens

15 July 2008

I would like to share the way that I built the assembly jig, as I had to make everything portable because of the constraints that I have in the area to work on my boat. I put it on wheels.

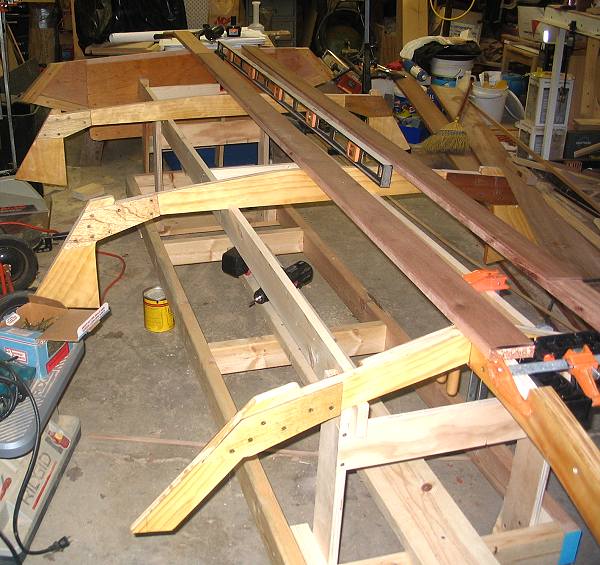

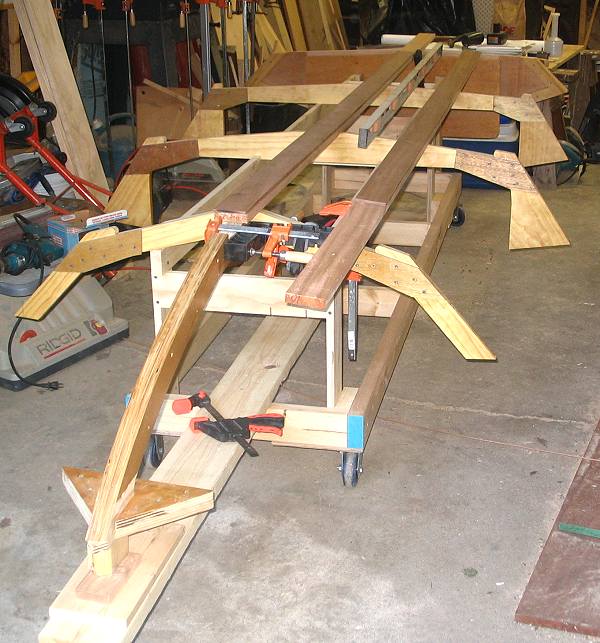

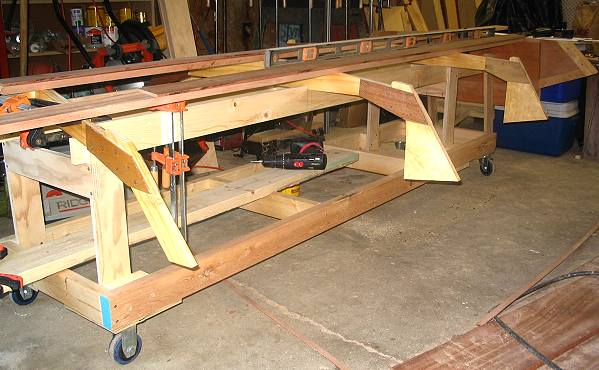

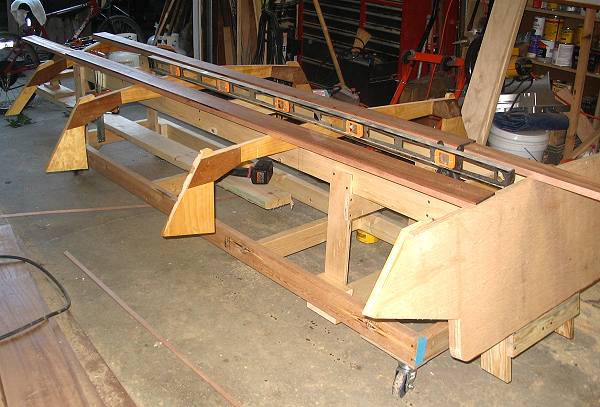

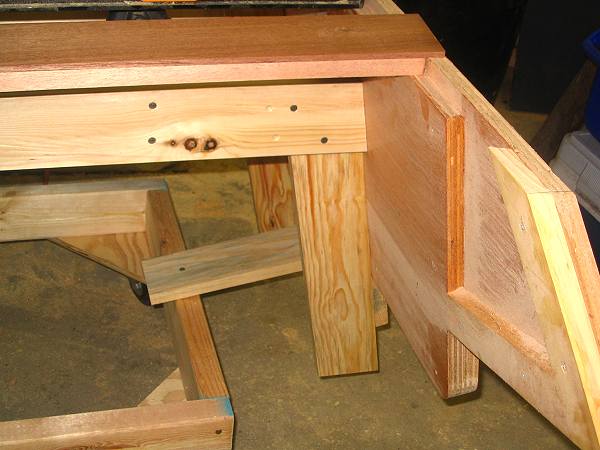

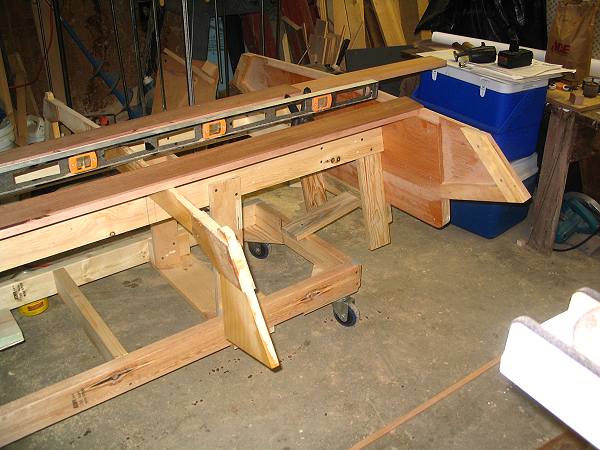

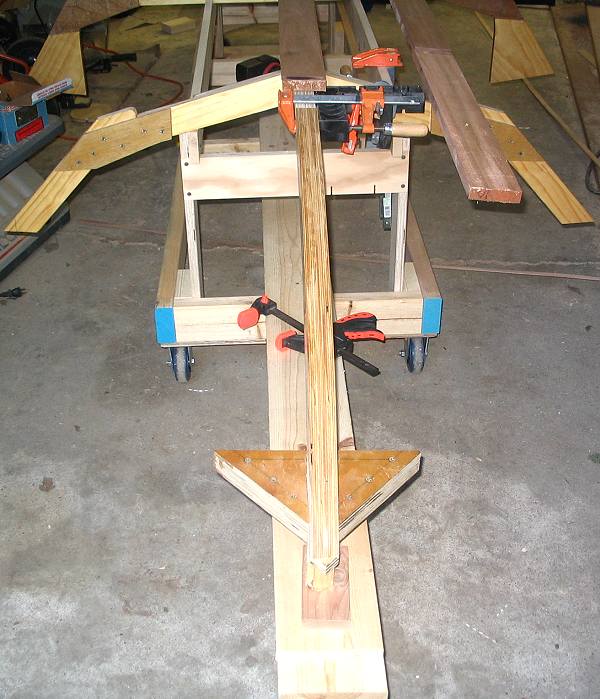

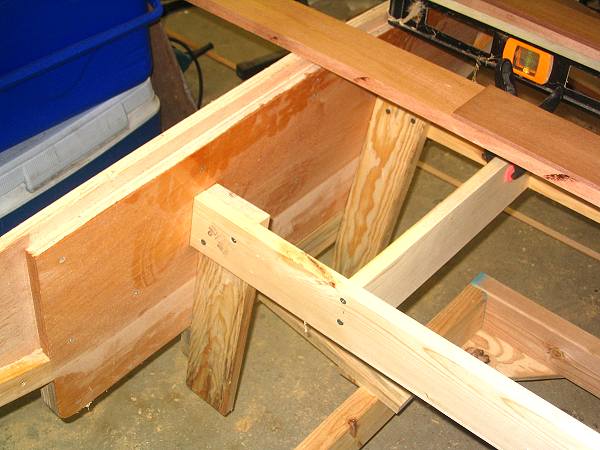

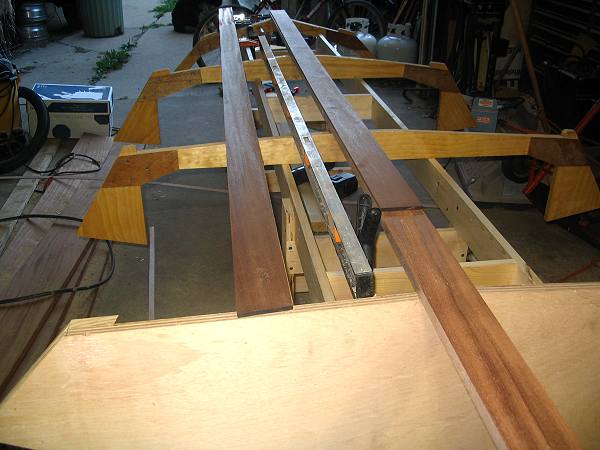

After a few months of being too busy to work on the TNT I finally have had some time to build. As you can see the jig is fairly simple; a 2x4 lower frame and the same uprights that are shown in the plan. Besides not having the room in my garage to make the jig stationary, the floor out there is cracked and nowhere near flat, hence I built a square and true fixture. You can also see that I am finally making some progress on the boat.
