The notches have been filed and one section is planed (sheer clamp). |
|

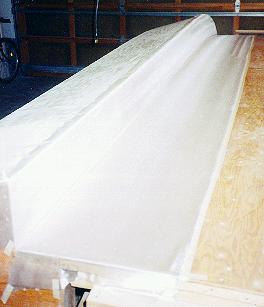

The glass cloth (4 oz.) is laid on dry and carefully smoothed before applying resin. The bottom was glassed in 4 longitudinal strips. Note that the point where the 2 pieces of glass cloth meet in the tunnel is the area of least stress. The 2 pieces were lapped and the resulting "hump" was easily sanded flat. |
|

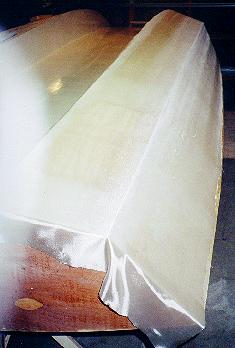

The final section of glass is laid out on the hull. |
