Inboard book Fig. 8-10

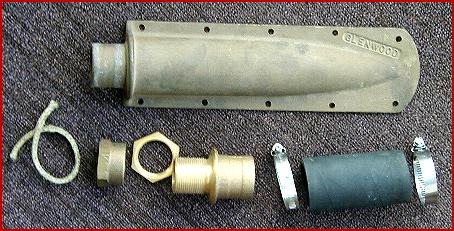

Fig. 8-10 - Components used in the typical self-aligning shaft log. The rubber hose between the shaft log and the stuffing box allows for minor misalignment between the propeller shaft and the shaft log.
