Windshield 5

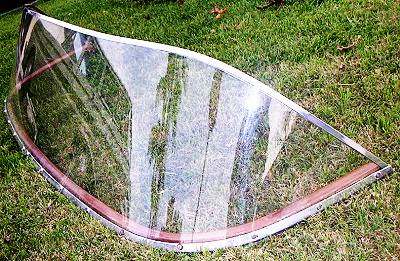

Photo #12. I built the windshield so it would come off easily. 5 wing nuts through the deck and 1 at each end through the covering boards.

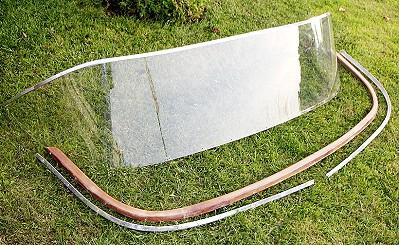

Photo #13. These are the parts that that make up the windshield. 1/8th inch Lexan/polycarbonate plastic. Aluminum channel for the top molding, 3/4" or 1" angle aluminum for the bottom molding and a wooden form/base mount to shape the bottom molding around.

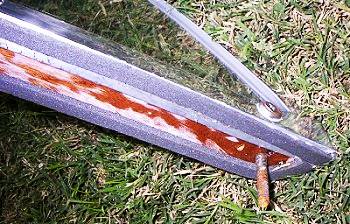

Photo #14. The bottom of the windshield has hardware store foam rubber to seal out water and to make up the difference in the thickness from deck to covering boards.
