Glen-L 13 Construction Pictorial

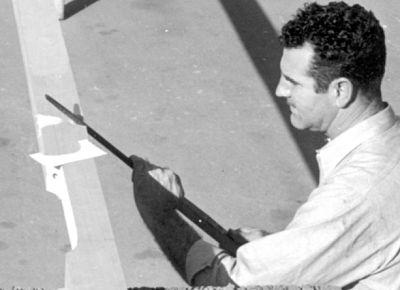

Fig 47: The templates given on plansheet #5 are used to form the contour at various points. Here the builder is using a wood rasp to roughly shape the contour.

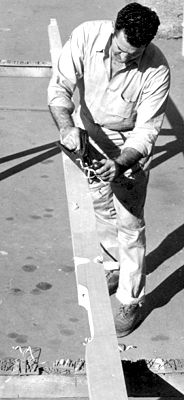

Fig 48: Using these faired points as a guide, a hand plane is used to remove the excess material between the notches to obtain a smooth fair contour.

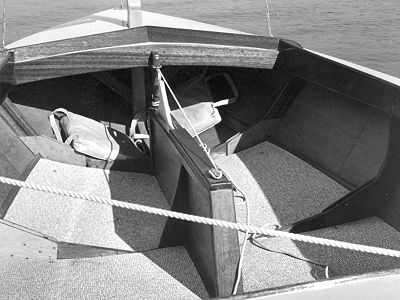

Fig 49: The cockpit. Note the floorboards fitted between the frames and centerboard lift and cleat.
|
