Fancy Free
Construction Pictorial

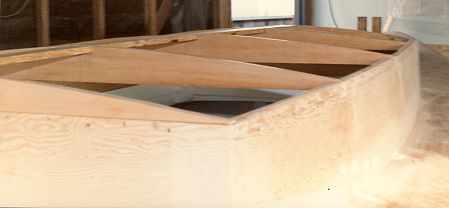

Fig 33: Cabin framing, showing deck roof beams.

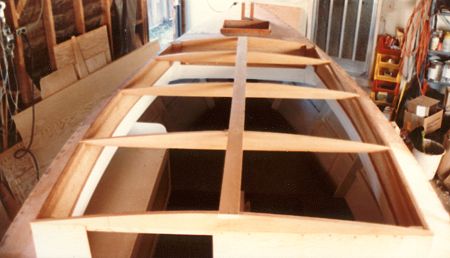

Fig 34: An overall view of cabin framing.

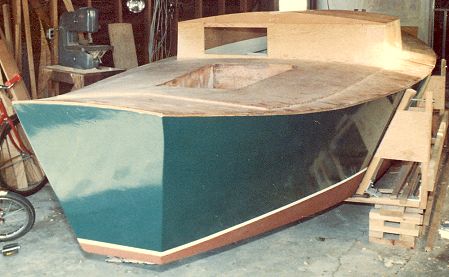

Fig 35: Aft view of cabin. The aft cabin roof beam and plywood cabin wall will be cut away.

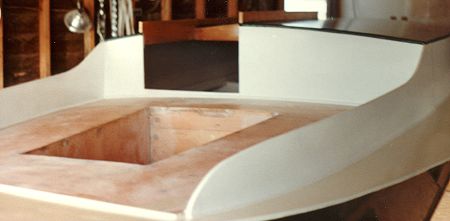

Fig 36: Several steps have occurred. The plywood coaming has been installed, the hatch framing installed and cabin has been painted.
|
